Specific instruments

For all specific applications where standard solution don't match your needs, we offer our customers design and manufacturing service based on our technical experience and recognised technology.

Specific instrument 1

The problem encountered being to come and control, on a conical part, an interior diameter greater than the opening through which it must pass. So we had to design an instrument that retracts to pass, and then deploys while keeping the nominal rating to control. the difficulty being to always fall back on the nominal dimension each time the instrument is deployed.

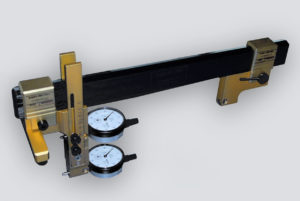

Specific instrument 2

The problem encountered being to have to control, at the same time, two internal diameters of a conical part and this on variable heights.

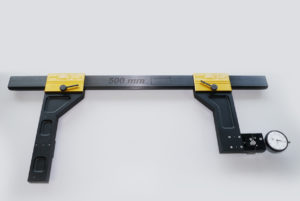

Specific instrument 3

The problem is to come and control a bore on a horizontal lathe and this without removing the tailstock of the lathe. So we had to make an instrument and its transfer standard, capable of "bypassing" the tailstock.
